NEW QUESTION # 21
What should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction?
- A. MLINE
- B. XLINE
- C. CURSORSIZE
- D. RAY
Answer: B
Explanation:
Explanation
According to the AutoCAD for Design and Drafting documents1, the command that should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction is XLINE2. This command creates a construction line, which is a type of reference line that can help you manage accurate parameters of your drawing2. You can also use point objects as nodes or reference geometry for object snaps and relative offsets3.
NEW QUESTION # 22
Move three applicable commands from the list on the left to the corresponding function on the right.
Commands may be used once or not at all (Select 3)
Answer:
Explanation:
Explanation
Box 1 : Batch plot
One of the topics covered in this course is Plotting Drawings2. In this topic, you can learn how to print multiple sheets or drawings to a plotter, printer, DWF file, or PDF file. The applicable command for this function is Batch plot (PUBLISH)2.
https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional Box 2: EtransmitOne of the topics covered in this course is Sharing Drawings2. In this topic, you can learn how to create a package of drawing files and their dependencies. The applicable command for this function is Etransmit (ETRANSMIT)2.
https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional Box3: ExportOne of the topics covered in this course is Exporting Drawings2. In this topic, you can learn how to save the objects in a current drawing to a different file format, such as SAT, STL, etc. The applicable command for this function is Export (EXPORT)2.
https://www-int.autodesk.com/certification/learning-pathways/autocad-design-drafting
NEW QUESTION # 23
You are modifying an AutoCAD drawing for a customer.
You would like to bring your customers attention to a specific area of the drawing that you modified for review.
Which type of object is conventionally used?
- A. A solid hatch
- B. A revision cloud
- C. A construction line
- D. A viewport
Answer: B
Explanation:
Explanation
The type of object that is conventionally used for this purpose is D. A revision cloud123. A revision cloud is a way to highlight changes or revisions in a drawing by creating a cloud-shaped polyline around them12. You can create a revision cloud by moving the mouse or by converting existing objects2. You can also change the style, color, layer and properties of the revision cloud13.
NEW QUESTION # 24
You have a drawing that contains three of the same objects.
Which object has layer transparency set to 90? Click the correct object in the answer area.
Answer:
Explanation:
Explanation
According to the AutoCAD for Design and Drafting documents, layer transparency is a property that makes objects on a layer appear translucent or opaque. The higher the transparency value, the more transparent the layer appears. Therefore, the object that has layer transparency set to 90 is the one that appears the most faded or dimmed in the drawing. In this case, it is the object on the right. You can click on it to select your answer.
NEW QUESTION # 25
You need to change the width of a specific polyline without affecting the width of the other polylines in a drawing.
What should you use?
- A. The PLINEWID system variable
- B. The LWEIGHT command
- C. The PLINEGEN system variable
- D. The PEDIT command
Answer: D
Explanation:
Explanation
polyline is a connected sequence of line segments created as a single object that can contain a width. You can change the width of a polyline by using the PEDIT command.
Based on 3 and 4, LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only. PLINEWID is a system variable that sets a default polyline width for new polylines. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices.
https://www.roadlesstraveledstore.com/how-do-i-change-the-width-of-a-polyline-in-autocad/
https://knowledgeburrow.com/how-do-i-change-the-width-of-a-polyline-in-autocad/
NEW QUESTION # 26
You plan to draw a line at an angle of 6.25 degrees.
Where in the user interface do you configure polar tracking to work at this angle after selecting Polar Tracking On?
Note: Exhibit shown is the AutoCAD interface in Wind. Which the AutoCAD for the Mac version differs in appearance, the correct answers correlate in the options.
Answer:
Explanation:
See the answer below:
Explanation
polar tracking is a feature that allows you to draw lines at specific angles. You can configure polar tracking to work at any angle you want by following these steps:
* Click on the arrow next to the Polar Tracking icon in the Status bar and select Settings.
* In the Drafting Settings dialog box, click on the Polar Tracking tab.
* Under Additional Angles, click on New and enter 6.25 as the angle value. Click OK.
* Make sure that 6.25 is checked in the list of additional angles. Click OK.
Now you can draw a line at an angle of 6.25 degrees by using polar tracking.
NEW QUESTION # 27
Which option of the Array command will distribute items along a path at specified intervals?
- A. Associative
- B. Measure Method
- C. Divide Method
- D. Align Items
Answer: B
Explanation:
Explanation
The option of the Array command that will distribute items along a path at specified intervals is Measure Method1. This method allows you to specify a distance between the items along the path
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2019/ENU/AutoCAD
NEW QUESTION # 28
Refer to the exhibit.
This section view was dimensioned using Baseline Dimensions The dimensions are too close together which impacts the drawing's legibility. What is the most efficient method to avoid this problem in the future?
- A. Move
- B. Dimension Style Manager
- C. Grip Edit
- D. Copy and Paste
Answer: B
Explanation:
Explanation
a baseline dimension is a linear, angular, or ordinate dimension that is measured from the baseline of a previous or selected dimension. The spacing between baseline dimensions can be set from the Dimension Style Manager, Lines tab, Baseline Spacing (DIMDLI system variable).
The most efficient method to avoid the problem of dimensions being too close together in the future is to use Dimension Style Manager. This will allow you to change the default spacing for all baseline dimensions in your drawing.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD
NEW QUESTION # 29
You have a simple polyline selected that consists of li Select whether each statement is True or False.
Answer:
Explanation:
* FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments.
https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-li
* Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1.
Therefore, the statement is false.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/Auto
* Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.
NEW QUESTION # 30
In which order should you perform the actions to rotate square (1) to match the angle of square (2).
Move all actions to the answer area and place them in the correct order.
Answer:
Explanation:
Explanation
rotate is a command that rotates selected objects around a base point to an absolute angle. You can specify the base point and the rotation angle by entering values or selecting points. You can also use the reference option to align objects with other objects.
* 1- Start the Rotate command, select the square, and press Enter
* 4- Specify the base point
* 5- Select the Reference option
* 3- Select the lower left corner and the lower right corner as the first and second points of the reference angle
* 2- Enter a value of 0 for the new angle and press Enter
NEW QUESTION # 31
With an associative array selected as shown in the exhibit, which command will separate the objects into individual objects?
- A. Ungroup
- B. Explode
- C. Break
- D. Disassociate
Answer: B
Explanation:
Explanation
array items are contained in a single array object, similar to a block. You can change the number of these items and their spacing in an associative array.
Based on 2, you can move an item in an associative array by pressing and holding the Ctrl key, and then selecting the items you want to move.
since explode is the command that separates objects into individual objects. Disassociate, ungroup and break are not valid commands for associative arrays.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD
NEW QUESTION # 32
A block entity in the current drawing needs to be converted to a new drawing file of its own.
Which command should be used?
- A. BEDIT
- B. BSAVEAS
- C. BLOCK
- D. WBLOCK
Answer: D
Explanation:
Explanation
the command that should be used to create a new drawing file from selected objects is WBLOCK. This command allows you to export a group of objects as a drawing, which can be inserted into other drawings as a block2.
NEW QUESTION # 33
You have a line segment that is 150 units long as shown in the exhibit.
You need the line to be 200 units long without adding any additional linework. The leftmost end of the line must remain in the current position.
What should you do?
- A. From the Edge Extension option of the Extend command, enter 50 units, and then select the right end of the line
- B. From the Delta option of the Lengthen command, enter 50! units and then select the right end of the line
- C. From the Project option of the Extend command, enter 50 units, and then select the right end of the line.
- D. From the Delta option of the Lengthen command, enter 200 units and then select the right end of the line
Answer: B
Explanation:
Explanation
From the Delta option of the Lengthen command, enter 50 units and then select the right end of the line. This way, you can increase the length of the line by 50 units from its current endpoint without changing its direction or position2
https://www.learnvern.com/autocad-tutorial-in-hindi/how-to-use-lengthen-command
NEW QUESTION # 34
You have two viewports at different viewport scales as shown in the exhibit. The geometry and dimensions were created in model space.
The viewport scales are 1 16 and 1:5. The dimension text height is the same for both viewports in the layout.
Evaluate the graphic and complete the statements by selecting the correct options from the drop-down lists.
Answer:
Explanation:
Explanation
Box 1 = annotative
an annotative dimension style is a dimension style that automatically adjusts the size of dimensions based on the viewport scale. An annotative dimension style has an icon next to its name in the Dimension Style Manager dialog box. The dimension style is annotative because the dimension text height is the same for both viewports in the layout, even though they have different viewport scales1.
Box 2 = associativeThe DIMASSOC is at its default value of 2, therefore the dimensions are associative because they are linked to and update with the measured geometry3.
NEW QUESTION # 35
You are using the UCS command to set the user coordinate system (UCS)
Select whether each statement is True or False.
Answer:
Explanation:
Explanation
* TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.
Based on 1, you can use the View option to align the UCS with the current view orientation. This option rotates the UCS so that it matches your current view of a 3D model.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD
* Falseccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.
Based on 1, you can use the World option to set the UCS back to its default orientation. This option resets the UCS so that it matches the WCS (world coordinate system).
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD
* TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.
Based on 1, you can use the Named option to save or restore named UCS definitions. This option allows you to create custom UCSs and switch between them easily.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD
NEW QUESTION # 36
A site plan was recently modified to relocate a building to a new location While relocating the building, only the hatch location of the building was moved by mistake as shown in the exhibit.
Evaluate the graphic and answer each question by selecting the correct options from the drop-down lists.
Answer:
Explanation:
Explanation
Box 1 = Turn on Associative Hatching
Box 2 = use the Recreate Boundary option from Hatch Editor
https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/Recreating-hatch-
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD
NEW QUESTION # 37
One of the lines in the drawing is at a 30 degree angle. What's the quickest way to align the X-axis of the UCS to that line?
- A. Right-click the UCS icon, click Object, and then select an object in the drawing as the location.
- B. Start the UCS command and enter a coordinate.
- C. Modify the properties of the UCS icon from Properties palette.
- D. Start the UCSBASE command and set the new value
Answer: A
Explanation:
Explanation
UCS is a command that sets a new user coordinate system (UCS) by specifying points or by selecting an object. You can use the Object option to align the UCS with a selected object such as a line.
Based on 3 and 4, UCSBASE is a system variable that sets the name of the current UCS base. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices. LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD
NEW QUESTION # 38
You need to convert the two sets of parallel lines shown in 1 into the objects shown in 2 without repeating the command.
What should you use?
- A. The FILLET command with the Polyline option
- B. The FILLET command with the Multiple option
- C. The CHAMFER command with the Polyline option
- D. The CHAMFER command with the Multiple option
Answer: D
Explanation:
Explanation
According to the AutoCAD for Design and Drafting documents, the CHAMFER command creates a beveled corner between two lines, while the FILLET command creates a rounded corner between two lines. Both commands can be used with the Polyline option to apply chamfers or fillets to all corners of a 2D polyline1.
However, in this case, the lines are not polylines but separate line segments. Therefore, using the Polyline option will not work. Instead, you can use the Multiple option to chamfer or fillet multiple sets of lines without restarting the command2.
NEW QUESTION # 39
You need to snap to the centroid of a closed polyline.
Which Object Snap mode should you use? Click the correct option in the answer area.
Note: Exhibit shown is the AutoCAD interface in Windows. While the AutoCAD for MAc version differs in appearance, the correct answer correlates in the options.
Answer:
Explanation:
Explanation
object snaps are modes that allow you to snap to specific points on objects. To snap to the centroid of a closed polyline, you should use the Geometric Center object snap mode. This mode will display an asterisk (*) marker when you move the cursor over the geometric center of a closed polyline or spline.
To use this mode, you can either:
* Click on the Object Snap icon in the Status bar and select Geometric Center from the menu.
* Type GCE at the command prompt or when prompted for a point and press Enter.
Now you can snap to the centroid of a closed polyline by using Geometric Center object snap.
NEW QUESTION # 40

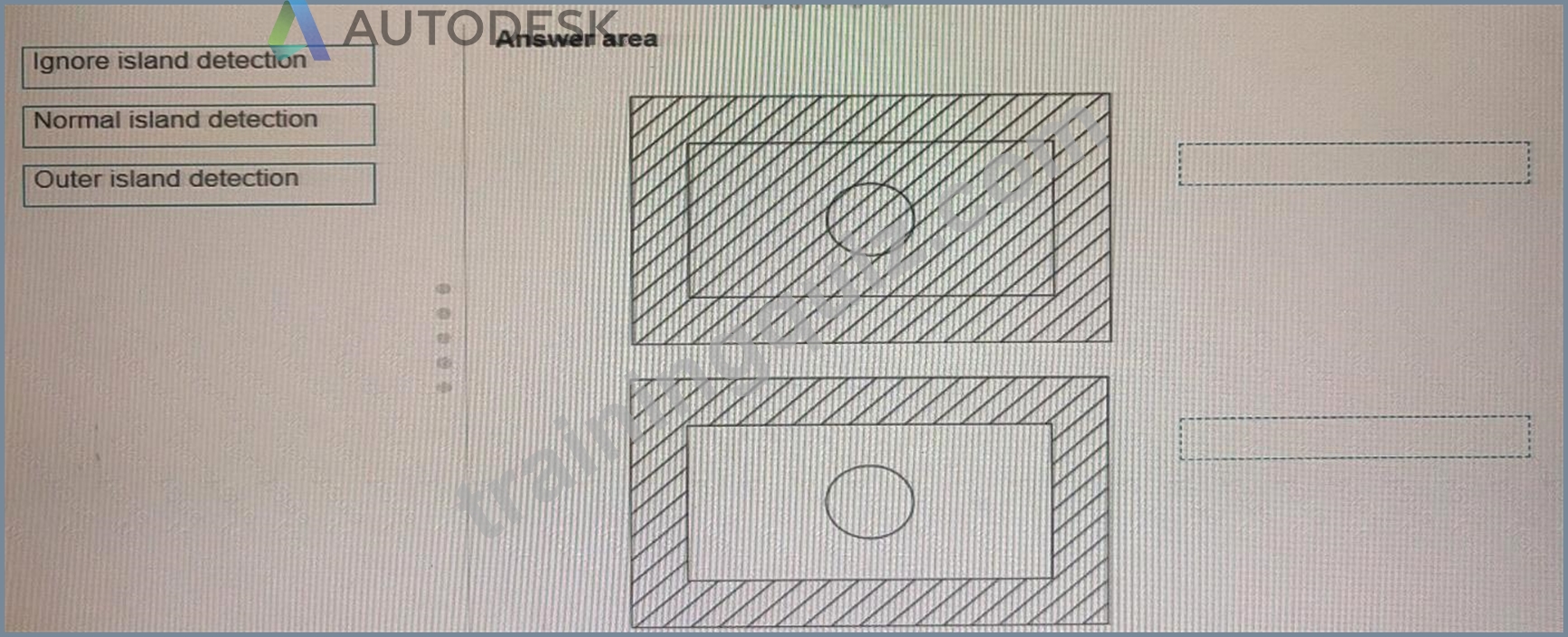

You are using the HATCH command in a drawing. You select the internal point that corresponds with the X as shown in the following exhibit.
Move each setting from the list on the left to the corresponding result on the right.
Answer:
Explanation:
Explanation
Box 1 = ignore island detection
Box 2 = Outer island detection
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD
NEW QUESTION # 41
......
